Applus+ IDIADA presents electric SUV car with optimal aerodynamic performance at Geneva International Motor Show 2018

17/07/2018

    Applus+ IDIADA presented its CRONUZ Project at the Geneva International Motor Show 2018. This is an EV compact SUV with an optimal aerodynamic performance, as aerodynamics is becoming increasingly crucial in the field of electric vehicles.

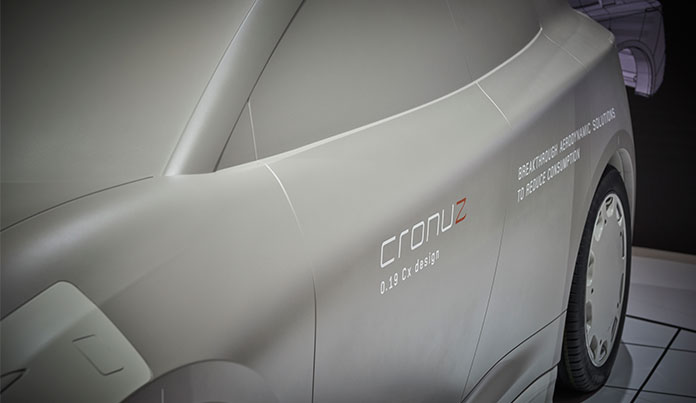

    Applus+ IDIADA presents electric SUV car

    The CRONUZ was developed from a blank page to fulfil best-in-class aerodynamic values thanks to the seamless cooperation between Applus+ IDIADA’s teams of aerodynamicists and designers. That cooperation allowed the upper body to be optimised while retaining the design concepts. This electric SUV concept car incorporates breakthrough aerodynamic solutions, including active and passive aerodynamic enablers that focus on key areas such as the wheelhouses and underbody.

    Aerodynamics innovation

    Within the CRONUZ Project, various rockers and fairings were investigated, achieving a potential improvement of 11 drag counts. This force reduction is achieved mainly by reducing forces on the wheels and increasing base pressure via reduced wake intensity. Assuming that the rocker and front fairing could break the design line, we decided to develop active systems for these parts.

    Since the wheel wells and underbody could be responsible for 40% of aerodynamic losses, they also had high potential for improvement. Design action taken in this area included optimising the rims and underbody wheelhouse covers end that they interact perfectly with the extended rockers and front fairings and therefore minimise air circulation in the wheelhouse. The improvements made to the wheelhouse covers and rims have led to a potential reduction of 44 drag counts.

    CRONUZ design features

    The design team’s objective was to create a minimalist aero design concept resulting in a pure and elegant form, with surface and volume solutions leading to a Cx of below 0.2. The main design features include emotional surfaces, a streamlined design form, steering laser headlamps, progressive-brightness OLED stop lights, a dynamics active cooling system/grille and an integrated driving-mirror camera.

    Final assessment in wind tunnel

    A full-scale model was used for testing the vehicle configurations and enablers with better CFD performance, as well as confirming the accuracy of the CFD aerodynamic forces. The best-performing vehicle configuration provided a Cx value of 0.19.

    Detailed flow measurements were also taken in the wake to validate the simulation set-up, including mesh discretisation, turbulence modelling and wind tunnel representation.

    CRONUZ technical specifications









    Compact electric SUV (C class) 1 electric motor per axle
    4 seats Lightweight BiW: 200 kg
    Dimensions: 4,415 x 1,819 x 1,536 mm Skateboard battery pack platform: 200L
    Wheelbase: 2,720 mm Closed under-hood with active grille shutter
    Ground clearance: 177 mm Rear-view cameras
    Low-friction high-efficiency 195/55/R20 tyres Intelligent lighting system







    By Enrique Aramburu
